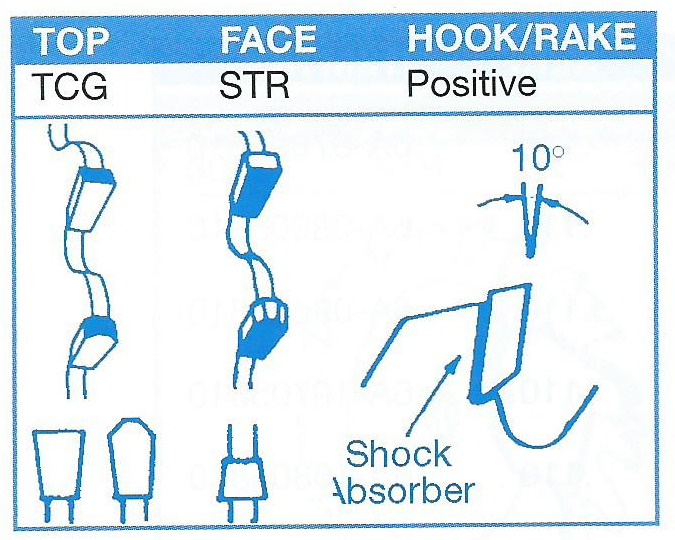

5A – Solid Hard Woods
Triple chip grind provides a clean cut and long life.
[table]
DIA.”, Teeth, Bore”, Plate”, Kerf”, Item No.
8,40,5/8,.084,.124,5A-08405824
9,50,5/8,.084,.124,5A-09505824
10,60,5/8,.084,.124,5A-10605824
10,70,5/8,.084,.124,5A-10705824
10,80,5/8,.084,.124,5A-10805824
[/table]

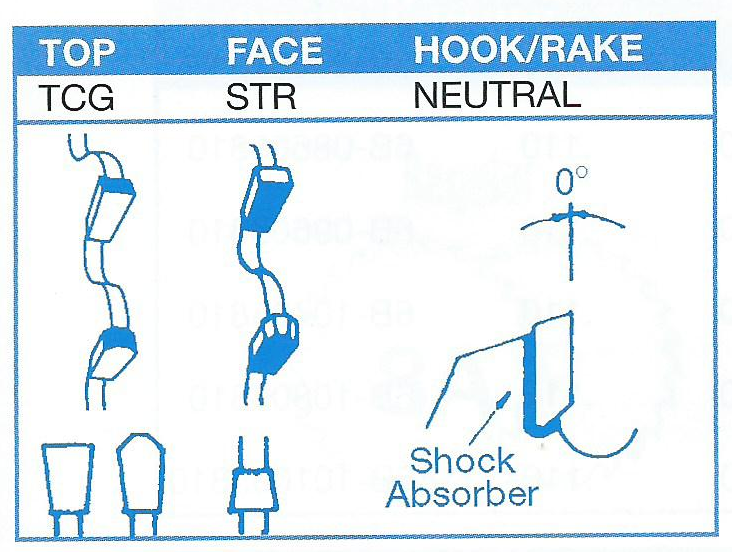

5B – Extra Hard Materials
Chipboards, particle boards, plywoods, MDF, etc.
[table]
DIA.”, Teeth, Bore”, Plate”, Kerf”, Item No.
8,60,5/8,.084,.124,5B-08605824
9,50,5/8,.084,.124,5B-09505824
10,60,5/8,.084,.124,5B-10605824
10,70,5/8,.084,.124,5B-10705824
12,80,1,.094,.134,5B-12800134
14,100,1,.110,.150,5B-141000150
[/table]

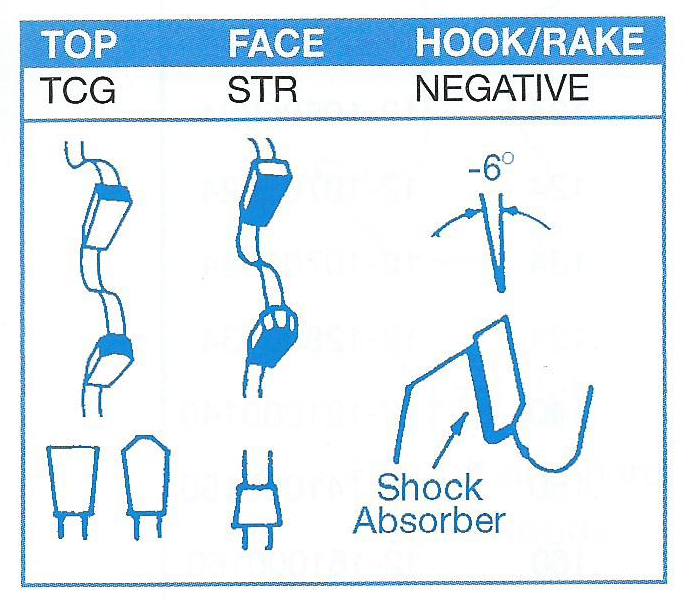

5C – Overhead Operations
Neg-hook provides raking action and will not grab.
[table]
DIA.”, Teeth, Bore”, Plate”, Kerf”, Item No.
10,60,5/8,.084,.124,5C-10605824
10,70,5/8,.084,.124,5C-10705824
12,80,1,.094,.134,5C-12800134
12,100,1,.094,.134,5C-121000134
14,100,1,.110,.150,5C-141000150
16,100,1,.120,.160,5C-161000160
[/table]
